Sample Hospital
Hospital for Children
Somewhere, USA
ID #:1956

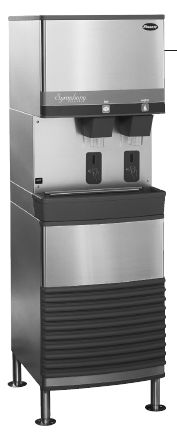

Item Name: ICEMAKER, FLOOR, 50LBS CAPACITY
Vendor Name: FOLLETT
Model: SYMPHONY FB SERIES 50FB400A-S
Cost: $10,140.00
Notes: Clearance air-cooled models only 4" (10 cm) rear; 12" (30 cm) top; Refer to cutsheet

PDF Document

Responsibility: OFCI
  1. Specs
  2. Locations
  3. Sums
  4. Changes
  5. Quotes
Width:21in.
Depth:23.62in.
Height:66.12in.
Weight:230lbs.
Volts:115
Hz:60
Amps:20
Phase:1
Watts:-
BTU:*
Data Water Drain Gas Vacuum Vent Steam
No Yes Yes No No No No
Electrical Notes:7' (2.1 m) cord, NEMA 5-20
Plumbing Notes: CW;DRN
